Volvo B230 Engine Timing Belt Alignment Marks

Below are photos illustrating the timing belt alignment on B230F style engines.

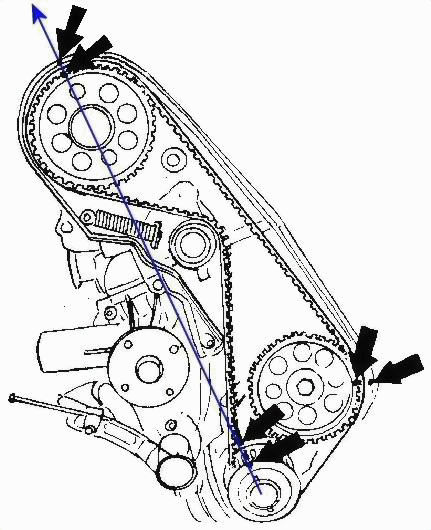

Overall alignment of markings:

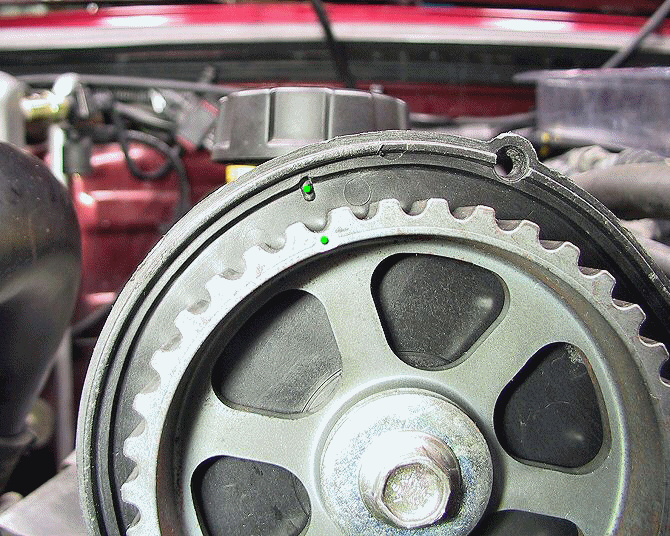

Markings on top cam gear:

Top Cam Gear Markings

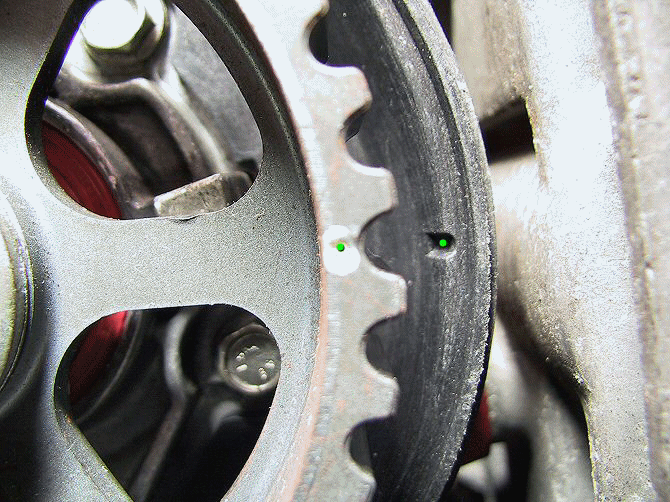

Markings on intermediate shaft gear:

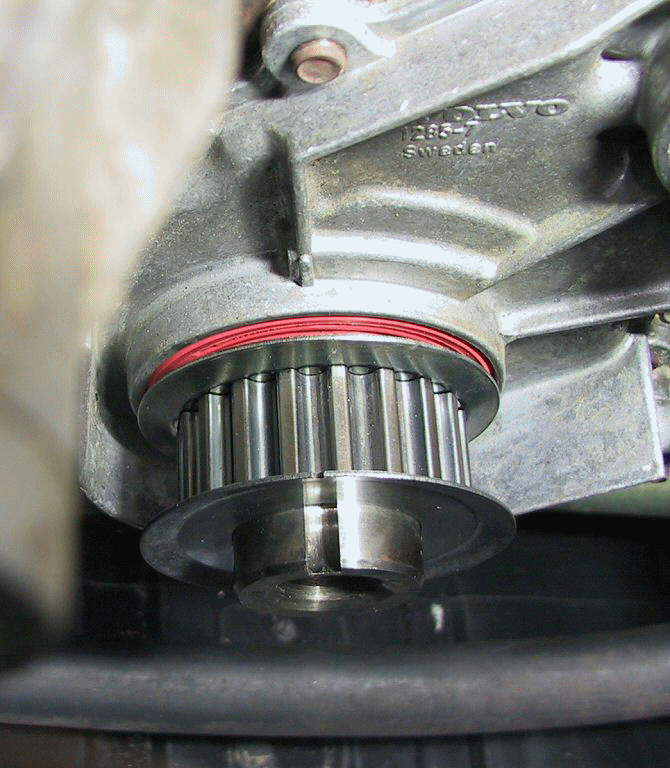

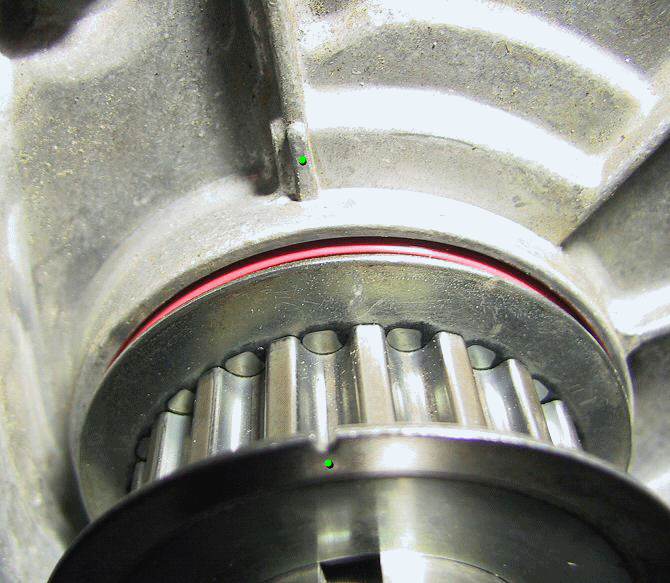

Markings on crankshaft gear:

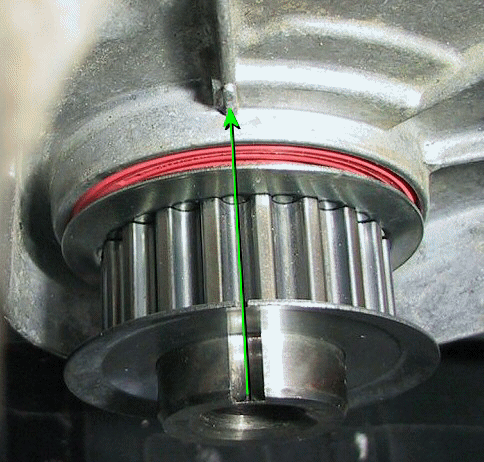

Slot on crank gear washer matched to mark on crankcase cover:
