While efforts have been made to assure 100% accuracy, some of the information presented here may be incorrect due to late product changes and/or specification changes, which may have occurred. Production specifications are subject to change without notice. Key New Product Features S80 MY02 2.9 and T-6 - Improved Engine Performance and Throttle management
The S80 will be discernibly more responsive when the accelerator is depressed which enhance the level of driving pleasure. The function is designed in a way that the driving is smooth without sacrificing low speed performance. The engine has been re-tuned to provide more torque at lower engine speeds. You may notice that the 2.9 naturally-aspirated engine actually loses 3 horsepower on paper compared toMY01. However, a quick test drive will have you think otherwise. Initial acceleration and throttle response are vastly improved over previous model years. The improvements were achieved by increasing the control area of the variable camshaft for the intake valves, WR CVVT, and the fitment of a new inlet manifold for more effective gas exchange. A new exhaust pipe, which is designed for high low-end torque, also makes a contribution. Torque at 3,000 rpm has, for example, been increased by about 7%. The new six-cylinder, light-pressure bi-turbo engine has improved low-end torque, which results in faster acceleration. This is an RN-type engine with reduced inner friction and a displacement of 2.9 liters (same engine block as the B6294S). This engine has higher torque at engine speeds under ~4,000 rpm, which results in more power and improved response, thereby enhancing driving pleasure. The T-6 gets both larger displacement and the engine has variable control of both the intake and exhaust valves. The variable WR CVVT camshaft gives the engine maximum torque at engine speeds from as low as 1,800 rpm (previously at 2,400 rpm). With the two turbochargers, one for each set of three cylinders, the engine reacts very quickly to the throttle. A new design for the exhaust pipes with a catalytic converter for each set of three cylinders means both 6 cylinder engines burn cleaner emissions. - Interior Switch for Fuel Lid
An interior switch will be added to the lighting instrument cluster. The switch turns off a diagnostic system that detects evaporation of fuel vapor. It is expected that this switch will help mitigate false reads and incorrect illumination of check engine lights. The fuel lid will automatically relock should the vehicle exceed 4 MPH. - Emergency Trunk Release
Bright yellow plastic handle with cord attached to the locking mechanism to allow for easy release of the trunk lid incase of entrapment. - Steering Wheel
A new steering wheel is used on the S80 for MY02 c/o the V70. - STC Improvements
Improved engine intervention due to a more powerful processor and new algorithms for the traction control in STC has been improved by increasing the speed range of the system. It will regulate the system up to 75 MPH (previously 44 MPH) but has to enter the traction control mode at a speed lower than 25 MPH. - Emergency Brake Assistance (EBA) dramatically reduces stopping distances in panic situations. Only available with DSTC system· Interior Improvements
New steering wheel and door panel material helps improve the interior quality impression. Remote door opener is also new and improved. - Special Option Group
All S80 will be equipped with a special limited-time option group that will be offered at a great value. Both the 2.9 and T-6 packages will include a 10-disc CD changer mounted in the truck and controlled by the radio. Also included are anti-smash and grab side windows (aka security laminated side windows). These slightly thicker side windows have a film of plastic laminated between two layers of glass making it extremely difficult to quickly smash the glass and grab whatever valuables may be in the interior. They also have the added benefit of reducing exterior noise, keeping the cabin environment extremely quite. The S80 is the only car in its segment to offer this great security feature. Also included with T-6 option package is DSTC (Dynamic Stability Traction Control) together with the new EBA (emergency brake assist). Please review the following Headstart pages for further details. New Feature Introductions DVD Volvo Navigation System - The Volvo Navigation System made its debut in the MY99 S80, and since it has been incorporated on most P2 vehicles. While a convenient and worthwhile option for many, improvements have been made to the CD-based system to improve customer satisfaction and ease of operation.
- The Volvo Navigation System (VNS) is an electronic information and route guidance system that helps the driver find any destination under a variety of options (e.g. shortest route, fastest time, use of highways and toll roads). The system keeps track of the position of the vehicle using the Global Positioning Satellite (GPS) system and automatically recalculates the route if the driver goes off the systems plan.
- The most significant improvement of VNS was the incorporation of DVD media. The previous generation VNS used CD-ROM media to store maps and data. The advantages of using DVD media are storage capacity and speed. CD-ROM based VNS would require 9 separate CDs to provide coverage in the continental United States, whereas with the DVD format, only one disc is necessary for the United States and Canada.
- Route calculation, Data retrieval, and rerouting speeds are significantly enhanced versus the CD-ROM system.
- The size of the VNS display has increased by 1", measuring 6.5 inches. This color, wide screen unit is situated at eye level so it can be read easily and quickly. When not is use the display hides discretely inside the center speaker on the dashboard.
- In addition to the steering wheel mounted controls, a hand held remote will be included with every VNS ordered as a factory option. This remote allows passengers access to the system without having to distract the driver.

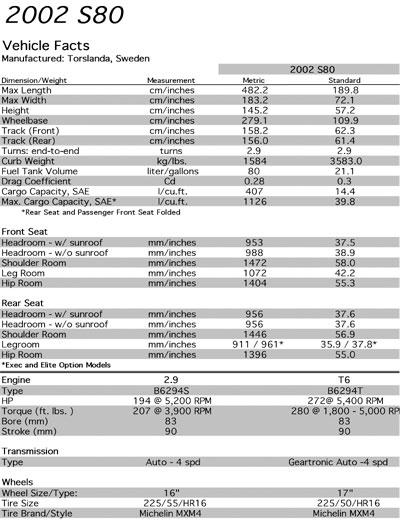

SPECIFICATION OVERVIEW S80 Model Year 2002 SALES VERSION S80 2.9 Badge S80 2.9 6 Cylinder, 194HP with 207 lb. / ft. of Torque 4 Speed Automatic Transmission Stability Traction Control (STC) SIPS Structure with Side Impact Air Bags Dual Stage Front Air Bags IC (Inflatable Curtain) WHIPS Whiplash Protection Seats Pyrotechnic Pretensioners in All Seating Positions Emergency Trunk Release Handle Retractable Luggage Holder in Trunk Dual Zone Electronic Climate Control Electrical Foldable Rear Headrest Power Glass Sunroof Memory Exterior Mirrors B-Pillar Rear Seat Vents Trip Computer Central Locking System with Keyless Two-Step Unlock / Entry Security System with Battery Back-up Siren Exterior Approach Lighting (including mirror puddle lamps) Homelink® Garage Door & Remote Lighting System Immobilizer Rolling Code Theft Deterrent System Leather Upholstery Seating Surfaces Power 8-Way Adj. Driver (w/ Memory) & Passenger Seat 60/40 Split, Fold-down Rear Seats Two Center Console Integrated Cup Holders Two Integrated Cup Holders, Rear Armrest Auto-down/up Front Windows Power, Heated Exterior Mirrors with Memory Auto Dimming Interior Rearview Mirror Tilt/Telescoping, Leather Wrapped, Color Coordinated Steering Wheel w/ Integrated Audio/ Cruise Controls Simulated Walnut Wood Inlays HU-611 Single CD, Full Logic Cassette, AM/FM Stereo, w/CD Changer Control, Eight Speaker Base System Pollen filter for passenger compartment 16 x 7 ICARUS Alloy Wheels 215/55 HR 16 All-Season Tires Bold Type indicates New Features SPECIFICATION OVERVIEW S80 Model Year 2002 SALES VERSION S80 T6 Badge S80 T6 6 Cylinder, 2.9L, 272 HP with 280 lb. / ft. of Torque 4 Speed, Geartronic Automatic Transmission Stability Traction Control (STC) SIPS Structure with Side Impact Air Bags Dual Stage Front Air Bags IC (Inflatable Curtain) WHIPS Whiplash Protection Seats Pyrotechnic Pretensioners in All Seating Positions Emergency Trunk Release Handle Retractable Luggage Holder in Trunk Dual Zone Electronic Climate Control Power Glass Sunroof Electrical Foldable Rear Headrest B-Pillar Rear Seat Vents Trip Computer Central Locking System with Keyless Two-Step Unlock / Entry Security System with Battery Back-up Siren Exterior Approach Lighting (including mirror puddle lamps) Homelink® Garage Door & Remote Lighting System Immobilizer Rolling Code Theft Deterrent System Leather Upholstery Seating Surfaces Power 8-Way Adj. Driver (w/ Memory) & Passenger Seat 60/40 Split, Fold-down Rear Seats Two Center Console Integrated Cup Holders Two Integrated Cup Holders, Rear Armrest Auto-down/up Front Windows Power, Heated Exterior Mirrors with Memory Auto Dimming Interior Rearview Mirror Tilt/Telescoping, Leather Wrapped, Color Coordinated Steering Wheel w/ Integrated Audio/ Cruise Controls Simulated Walnut Wood Inlays HU-611 Single CD, Full Logic Cassette, AM/FM Stereo, w/CD Changer Control, Eight Speaker Base System Integrated Front Fog Lights Pollen filter for passenger compartment 17 x 7 ARRAKIS Alloy Wheels (Option Package) 225/55 HR 16 All-Season Tires Bold Type indicates New Features STANDARD FEATURES/OPTIONAL EQUIPMENT S80 Model Year 2002 DRIVETRAIN | S80 2.9 | S80 T-6 | B6294S CVVT, ULEV 2.9 L I-6 194 hp @ 5200 rpm 207 @ 3900 rpm | S | N/A | B6294T with Double CVVT 2.9L I-6 Bi-turbo 272hp @ 5200 rpm 280 ft. lbs. of torque @ 1800 - 5000 rpm | N/A | S | 4 speed GM65E automatic | S | N/A | 4 speed GM65E automatic with “Geartronic” (allows for full range of manual shifting) | N/A | S | CHASSIS / SUSPENSION | | | 4 Wheel disc brakes (front ventilated) with Anti-Locking Brake System (ABS) and Electronic Brake Distribution (EBD) | S | S | Stability and Traction Control System (STC) | S | S | Dynamic Stability Traction Control (DSTC) Note: W135 – W149 100% Option on T6 | O | 0 100% | 7 x 16" “ICARUS” alloy wheels with 215/55/16" Michelin MXM4 all-season tires | S | N/A | 7 x 17" "ARRAKIS" alloy wheel with 225/50/17 Michelin MXM4 all-season tires Note: W135 – W149 100% Option on T6 Includes Speed Sensitive Steering | O | O 100% | Front mud flaps | S | S | Driver and front passenger dual-stage airbags | S | S | Side Impact Inflatable Curtains | S | S | Side Impact Airbags in front seats (SIPS) | S | S | 2 Self-adjusting front safety belts with pre-tensioners | S | S | 3 Rear safety belts with pre-tensioners (2 rear belts in Executive) | S | S | WHIPS Safety Seats (driver and front passenger) | S | S | Security system with siren and battery back-up | S | S | Ignition Immobilizer – anti-theft system | S | S | Safe Approach and Home Safe Light System | S | S | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A = NOT APPLICABLE STANDARD FEATURES/OPTIONAL EQUIPMENT S80 Model Year 2002 SAFETY / SECURITY | S80 2.9 | S80 T-6 | Entry / Exit lights in outer rearview mirrors | S | S | Daytime Running Lights (DRL) | S | S | Side-direction indicators on side of front fender | S | S | Laminated Side Windows (Door Windows Only) – Note: W135 – W149 100% Option | O 100% | O 100% | Interior Mass Movement Sensor Note: W135 – W149 100% Option on T6 | A | O 100% | Level Sensor Note: W135 – W149 100% Option on T6 | A | O 100% | Air Quality Sensor (AQS) Note: W135 – W149 100% Option on T6 | N/A | O 100% | Front foglights | O | S | COMFORT / CONVENIENCE | | | Dual zone electronic climate control | S | S | Driver and passenger 8-way power seat (driver with 3 memory and remote memory) | S | S | Cabin air filter | S | S | 2-step remote entry | S | S | Power windows with driver and front passenger auto-down and up with anti-trap | S | S | Power, heated mirrors | S | S | Autodim rearview mirror | S | S | Power Adjustable Mirrors with memory | S | S | Cruise control (controls in steering wheel) | S | S | Power glass sunroof with auto open / close and anti-trap | S | S | Illuminated driver and passenger vanity mirrors | S | S | Homelink | S | S | Retractable grocery bag retainer in trunk | S | S | Trip computer / message center | S | S | Outside temperature gauge | S | S | Leather upholstery (seating surfaces) | S | S | Leather upholstery (seating surface) on specifically designed T-6 seats | N/A | S | Simulated walnut wood trim on instrument panel, front and rear doors, tunnel console and shift knob | S | S | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A = NOT APPLICABLE STANDARD FEATURES/OPTIONAL EQUIPMENT S80 Model Year 2002 COMFORT / CONVENIENCE | S80 2.9 | S80 T-6 | Front and rear 12V power outlets | S | S | Color-coordinated leather steering wheel (with cruise and audio controls) | S | S | 2 front cupholders, 1 in armrest other on passenger side center console | S | S | 2 rear cupholders in fold-down center armrest (not applicable to Executive) | S | S | Split folding rear seat with center armrest and trunk pass-through (not applicable to Executive) | S | S | Plush floor mats | S | S | Stainless steel door sill protection | S | S | HU-611 in-dash single CD with AM / FM stereo and tape cassette, 100 watts, 8 speakers with dual diversity antenna | S | S | Illuminated Audio volume and presets / search controls mounted in steering wheel | S | S | 10 Disc CD Changer (Trunk Mounted) Note: W135 – W149 100% Option | O 100% | O 100% | SC-801 Surround Sound System - 4 CD in-dash audio (in place of cassette) - Dolby Pro-Logic - 200-watt amplifier with 10 premium high-output speakers | O | O | Tilt / Telescopic steering wheel | S | S | Electronically folding rear head restraints (for improved rear visibility) | S | S | Cold Weather Package - Heated seats - Headlamp wipers | O | O | Warm Weather Package (not applicable to Executive) - Infra-red reflective front windshield - Rear door side sun curtains - Rear window sun curtain | O | O | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A = NOT APPLICABLE OPTIONAL EQUIPMENT PACKAGES S80 Model Year 2002 "Special Value" Option Package (W135 – 149) Note: Ordered 100% on all Models | 2.9 | T6 / Exec | - 10 Disc CD Changer
- Laminated Side Glass
| - 10 Disc CD Changer
- DSTC
- Laminated Side Glass
- Level Sensor
- Interior Mass Movement Sensor
- IAQS (Interior Air Quality Sensor)
- 17" ARRAKIS Alloy Wheels
- Heated Front Seats (Exec)
- Headlamp Washer / Wipers (Exec)
| Warm Weather Package | - Infra-Red Reflective Front Windshield
- Rear Window Sun Curtain
- Rear Door Sun Curtains
| Cold Weather Package (2.9/T6) | - Heated Front Seats
- Headlamp Washers/Wipers
| Elite Option Packages (W135 - 149) Note: Ordered 100% on all Models | Elite Option Package | Elite Special Option Package | - Wider Door Opening Angle, Rear
- Rear bench seat
- Unique cut/sew leather with extra cushioning and contrast piping
- Color coordinated exterior trim
- Added rear leg room
- Heated Rear Seats
- Two power outlets and rear ashtray
- Electric rear sun curtain
- Genuine burled Italian walnut wood trim
| - Heated Front Seats
- Headlamp wipers/washers
- 10 Disc CD changer in the trunk
- DSTC
- Laminated Side Glass
- Inclination Sensor
- Mass Movement Sensor
- Interior Air Quality Sensor
- 17” Sentinel Wheels
| Individual Options S80 Model Year 2002 Individual Options | - Metallic Paint
- Navigation System (VNS) - W150 Production (December 10th)
- 17" ARRAKIS (2.9)
- DSTC (2.9) - W150 Production (December 10th)
- HU-801 In-Dash 4 CD with Dolby Surround Sound
| S80 Executive and Elite Model Year 2002 S80 EXECUTIVE AND ELITE | S80 Exec | S80 Elite | B6294T with Double CVVT 2.9L I-6 Bi-turbo 268 hp @ 5200 rpm 280 ft. lbs. of torque @ 1800 - 5000 rpm | S | S | 2 additional inches of rear legroom | S | S | Wider door opening angle, Rear | S | S | Heated Rear Seats | S | S | Extra Padding in the Rear Seat and Bottom Cushion Extended 1 Inch for Increased Leg Support | S | S | Rear Bench Seat –3 passengers (No Center Console) | N/A | S | Executive Seating for 2 Passengers | S | N/A | Multi-functional rear center armrest / console | S | N/A | 2 rear cup holders in center console | S | N/A | Power outlet (Elite has 2 outlets) | S | S | Executive Emblem (C Pillar) | S | N/A | Elite/Executive Emblem (Crown Emblem on C Pillar) | S | S | 17” SENTINEL Alloy Wheels with Michelin MXM4 (A/S) Radial Tires | N/A | S | Genuine Burled Italian Walnut Wood Trim | S | S | Upgraded Leather Upholstery with Contrasting Piping | N/A | S | Front Mud flaps | S | S | Color Coordinated Exterior Trim | S | S | Electric rear window sun curtain | S | S | 68 channel capacity color TV tuner/ Video screen mounted in rear console between the backs of the two front seats | S | N/A | DVD player that also plays CD audio and CD video, Dolby ProLogic Surround sound and is totally integrated into the vehicle audio system | S | N/A | Infrared remote to control audio and video from front or rear seats | S | N/A | 12-volt refrigerator that holds 2 quart bottles or 8 12 oz. cans | S | N/A | S = STANDARD 0 = FACTORY OPTION A = ACCESSORY N/A = NOT APPLICABLE S80 Executive Program The S80 Executive Program not only enhances the luxury image of the S80, but it also helps to reach out to new customer segments, while maintaining our traditional core values. The S80 Executive is an exclusive S80 with numerous enhancements for rear seat passengers. The design stresses luxury, prestige, understated elegance, comfort, safety, and peace of mind. At the same time, the S80 Executive becomes an efficient office on wheels or entertaining kids zone for travel. A great choice for the family of affluence, the corporate chauffeur, the government official or diplomat, or the livery operator ferrying passengers to the airport, hotel, or corporate meeting, the S80 Executive truly is a Swedish revolution in executive transportation. Executive features include: - Color Coordinated Exterior Trim
- Genuine Burled Italian Walnut Wood Trim
- Exterior Emblem
- Wider Door Opening Angles, Rear
- Unique cut/sew leather with extra cushioning
- Added Rear Legroom
- Heated Rear Seats
- Multi-Functional Rear Armrest and Console
- Rear Cup holders
- Power Outlet and Ashtray
- Electric Rear Window Sunshade
- Front Mud flaps
- Integrated Refrigerator
- DVD/CD Player/68 channel capacity color TV Tuner
Rear Seat Light, airy and breathing a sense of care and consideration, the passenger compartment is among the most spacious in its class. The specially designed rear seat has two exclusive armchairs in the finest leather. Extra padding, electric cushion and backrest heating, and extended legroom all contribute to the first-class feeling of comfort. Executive Center Console The exclusive center console contains a power outlet for a pocket phone or portable PC, cup holders, ashtray and controls for the seat heaters and rear sun curtain, as well as a TV / video monitor. The multi-functional armrest has space for additional equipment such as a built-in refrigerator and DVD player. In addition to the above features, all Executives ordered between W135 W149 will include a Special Option Package (100% Option) that includes interior and exterior items designed to increase the look, comfort and safety of this extraordinary vehicle. They include: - Heated Front Seats
- Headlamp wipers/washers
- 10 Disc CD changer in the trunk
- DSTC
- Laminated Side Glass
- Inclination Sensor
- Mass Movement Sensor
- Interior Air Quality Sensor
- 17 ARRAKIS Alloy Wheels
Elite Option Package Model Year 2002 The Elite package blends the luxurious comforts and exterior styling of the S80 Executive with the optimum rear seating capacity. It features: - Rear Door Emblem
- Wider Door Opening Angle, Rear
- Rear bench seat folds down for extra storage capacity
- Unique cut/sew leather with extra cushioning and contrast piping
- Color coordinated exterior trim
- Added rear leg room
- Heated Rear Seats
- Two power outlets and rear ashtray
- Electric rear sun curtain
- Genuine burled Italian walnut wood trim
The Elite will also feature a Special Option Package the will be ordered on 100% of the vehicles. It includes: - Heated Front Seats
- Headlamp wipers/washers
- 10 Disc CD changer in the trunk
- DSTC
- Laminated Side Glass
- Inclination Sensor
- Mass Movement Sensor
- Interior Air Quality Sensor
- 17 Sentinel Wheels
|
