Key New Product Features
Cross Country
MY02

New Model
Volvo Ocean Race Cross Country

  • Limited Edition Vehicle directed towards sailing markets, though available for all
  • Commemorate Volvo’s participation and sponsorship in this global sporting event
  • Production start: late CY 2001
  • Unique Features:
    • Exclusive Exterior Color - Ocean Blue (Paint Code 458)
    • Silver Side Body Moldings
    • Unique, Exterior Emblem, front L/R doors
    • Floor mats with Ocean Race logo
    • Additional Aluminium Rear Skid Plate decor
    • Aluminium Front Skid Plate decor (same as today)

Note: All Other Feature Content Same as Standard Cross Country

Platform Introductions

  • Improved throttle management for 5 cylinder turbos. The Cross Country will be discernibly more responsive when the accelerator is depressed which enhance the level of driving pleasure. The function is designed in a way that the driving is smooth without sacrificing low speed performance.

Mk 25 Brake System

  • STC Improvements – improved engine intervention due to a more powerful processor and new algorithms
  • Traction Control in STC and TRACS has been improved by increasing the speed range of the system. It will regulate the system up to 75 MPH (previously 44 MPH) but has to enter the traction control mode at a speed lower than 25 MPH.
  • DSTC availability with AWD – Available Dec. 10th / W150 Production
  • Emergency Brake Assistance (EBA) – dramatically reduces stopping distances in panic situations. At these critical moments, there is sometimes the tendency to relax pressure off the brake pedal once ABS modulation occurs. EBA ensures that full braking power is applied.

Packages
As stated above, Cross Country packages have been revised to align more closely with the content and nomenclature of the rest of the Volvo lineup. The benefit of this rationalization is to provide product continuity between models and the enhancement of communication between the retailer and customer.

As such, two new packages have been developed using similar logic in content with the S60.

  • Premium Package: Consists of high customer demand features of Leather Upholstery, Leather Wrapped Steering Wheel, Simulated Wood Inlays, In-dash CD Player, Power Passenger Seat
  • Versatility Package: Consists of the 3rd Row Seat, Integrated Booster Cushion and Trash Bin.
    Note: New for MY02 is the integrated booster cushion for the 40/20/40 2nd row seat. As such, there will not be the option to obtain the 60/40 2nd row seat as in MY01. However, there is only one booster cushion (Driver's side, outboard position) on the Cross Country until Production W208 when two integrated cushions will be available. The price for the Integrated Booster Cushion for the Cross Country has been adjusted accordingly.

Standard Content
Standard Content additions are as follows:

  • Cargo Security Cover
  • Sunroof

Sunroof: To alleviate customer and dealer confusion, beginning from start of production, Sunroof will now be standard on Cross Country.

In addition to the above additions to the standard content, two items were removed and have been offered in option packages. They are:

  • Dash Cupholder deleted as standard equipment – Added to Touring Package

New Feature Introductions
DVD Volvo Navigation System

  • The Volvo Navigation System made its debut in the MY99 S80, and since it has been incorporated on most P2 vehicles. While a convenient and worthwhile option for many, improvements have been made to the CD-based system to improve cus-tomer satisfaction and ease of operation.
  • The Volvo Navigation System (VNS) is an electronic information and route guidance system that helps the driver find any destination under a variety of options (e.g. shortest route, fastest time, use of highways and toll roads). The system keeps track of the position of the vehicle using the Global Positioning Satellite (GPS) system and automatically recalculates the route if the driver goes off the system’s plan.
  • The most significant improvement of VNS was the incorporation of DVD media. The previous generation VNS used CD-ROM media to store maps and data. The advantages of using DVD media are storage capacity and speed. CD-ROM based VNS would require 9 separate CDs to provide coverage in the continental United States, whereas with the DVD format, only one disc is necessary for the United States and Canada.
  • Route calculation, Data retrieval, and rerouting speeds are significantly enhanced versus the CD-ROM system.
  • The size of the VNS display has increased by 1", measuring 6.5 inches. This color, wide screen unit is situated at eye level so it can be read easily and quickly. When not is use the display hides discretely inside the center speaker on the dashboard.
  • In addition to the steering wheel mounted controls, a hand held remote will be in-cluded with every VNS ordered as a factory option. This remote allows passengers access to the system without having to distract the driver.

Premium Sound System Upgrade

  • As a factory or retailer installed option, the V70 T5 and XC will receive the Audio Max system found on the S60. This represents a larger, external amplifier (4x75W vs. 4x50W); the premium speakers found on the S60; and the front door speaker ar-rangement (3 speakers vs. 2). As such, T5s ordered with the Audio Max System will have a different door panel (c/o the S60).

Interior Changes

  • New Exterior Color Offer: Cypress Green (447)
  • Leather Handbrake will feature a visible seam on the top of the lever (as of W150, December 10th Production).
  • Interior Switch for Fuel Lid – An interior switch will be added to the lighting instrument cluster. The switch turns off a diagnostic system that detects evaporation of fuel vapor. It is expected that this switch will help mitigate false reads and incorrect illumination of check engine lights. The fuel lid will automatically relock should the vehicle exceed 4 MPH.

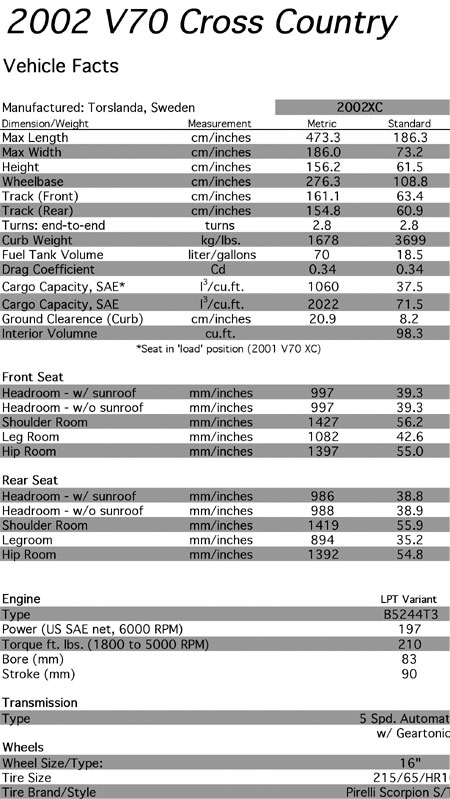

Specification Overview
Cross Country
Model Year 2002

SALES VERSION
V70 XC AWD

5 cylinder, 197 HP with 210 lb. / ft. of Torque
Light Pressure, Intercooled Turbo
5 Speed Automatic Transmission with Geartronic
All Wheel Drive with TRACS on All 4 Wheels
SIPS Structure with Side Impact Air Bags
Dual Stage Front Air Bags
IC (Inflatable Curtain)
WHIPS – Whiplash Protection Seats
ISO-FIX Baby/Child Seat Attachment System
Dual Zone Electronic Climate Control
Power Glass Sunroof
B-Pillar Rear Seat Vents
Central Locking System with Keyless, Two-Step Unlock / Entry
Security System with Battery Back-up Siren
Immobilizer – Rolling Code Theft Deterrent System
Exterior “Approach Lighting”, (Including Mirror Puddle Lamps)
“Klippegrund” Cloth/Vinyl Upholstery w/ Color Coordinated Door Inserts
Power 8-Way Adjustable Driver’s Seat w/ 3 Memory Settings(Seat&Mirrors)
Manually Adjusted Passenger Seat
40/20/40 Split, Fold-down Rear Seats w/ Removable Middle Backrest
Tilt/Telescoping Steering Wheel
Two Center Console Integrated Cup Holders
12V Power Outlet in Cargo Section
Integrated Front Console Handle Bar
Leather Gearshift Knob
Power Heated Exterior Mirrors
Five Floor Mats(Cargo Area Mat is a Reversible Textile/Rubber)
Grab Handle for Front Passenger
HU-413 Full Logic Cassette, AM/FM Stereo, w/CD Changer Control
Six Speaker Base System
Pollen Filter for Passenger Compartment
Cross Country Comfort Chassis
Front Skid Plate-Aluminum
Integrated, Front Foglights
Rear Cupholders integrated into Armrest
Roofrails
Cargo Security Cover
Illuminated Audio and Cruise Control Switches on Steering Wheel
7” x 16” TELLUS 6 Spoke Alloy Wheels
215/65/HR 16 All-Season, Pirelli Scorpion S/T Tire

Bold Type indicates New Features Bold

STANDARD / OPTIONAL EQUIPMENT
Cross Country
Model Year 2002

DRIVETRAIN

XC

B5244T3, LEV Engine: Transversely Mounted, 2.4 liter, Light-pressure turbocharged and Intercooled, All Alloy, 5 Cylinder, DOHC 20 Valve (Solid Tappets), Bosch ME7 Engine Management System.

197 HP at 6,000 RPM, 210 lb./ft @ 1,800 –5,000 RPM

S

AW55-50 5-speed, Microprocessor-Controlled Automatic with Geartronic and Winter Mode Selector Switch.

S

AWD with TRACS-Traction Control System on all 4 Wheels.

S

PremAir® Treated Radiator

S

BRAKES AND SUSPENSION

Power Assisted, 4 Wheel Disc Brakes

S

4 Channel, Anti-lock Braking System (ABS), Electronically Controlled (Continental/Teves) w/ Electronic Brake               Distribution (EBD).

15” Wheel Brake System (11.3” Front/Rear discs, 286 mm /288 mm) with Asbestos Free Brake Pads.

S

Rack and Pinion Steering

S

Independent Front McPherson Strut Suspension with: Hydraulic Shocks, 23 mm Stabilizer Bar and Asymmetrically Mounted Front Springs

S

Multi Link Rear Suspension with: Hydraulic Shock Absorbers, 19 mm stabilizer bar and Coil Springs

S

16” X 7” TELLUS Alloy Wheels (49 mm Offset) with Pirelli Scorpion S/T 215/65/HR16  All Season Radial Tires

S

Tempa Spare tire

S

S = STANDARD O = FACTORY OPTION N/A = NOT APPLICABLE A = ACCESSORY

STANDARD / OPTIONAL EQUIPMENT
Cross Country
Model Year 2002

BODY AND INTERIOR

 XC

Interior Courtesy Lights with Delay  "Dim Down" and "Auto Brighten-Up"

 S

4 Reading Lights, 2 Front / 2 Rear

 S

2 Foot-Well Door Entry Lights

 S

Illuminated Front Driver and Passenger Vanity Mirror

 S

Luggage Compartment Light

 S

Cruise Control

 S

Stop and Store Pocket

S

Replaceable Pollen / Dust Filter for Interior

 S

Electronically Controlled Automatic Climate System

S

12V Power Outlets (3 Total)

 S

Air Quality System (AQS)

 O

B-Pillar Adjustable Rear Seat Vents

S

Tilt / Telescoping Steering Column (3-piece design for added safety)

 S

Remote, Keyless 2-step Unlock /Entry System with Tailgate Release, Approach Lighting and Alarm with Panic Button

 S

Immobilizer Theft Deterrent System

 S

Follow-Me-Home Headlamps

 S

Security System

 S

  -  Pre-wired for glass break sensor

 S

  -  Inclination (level) sensor

A

  -  Mass movement sensor

 A

  -  Glass break sensor

 A

Instrument Cluster with Microprocessor Control and Diagnostics:

Speedometer: 160 MPH (US), 240 KPH (Canada)

 S

  -  Tripmeter / Odometer

 O

  -  Tachometer: 0-7000 RPM

 S

  -  Fuel Gauge

 S

  -  Water Temperature Gauge

 S

  -  Trip Computer (Includes: Digital Clock, Ambient  Temperature Gauge – Celsius and Fahrenheit, Driving Information)

 O

S = STANDARD O = FACTORY OPTION N/A = NOT APPLICABLE A = ACCESSORY

STANDARD / OPTIONAL EQUIPMENT
Cross Country
Model Year 2002

BODY AND INTERIOR (continued)

XC

Digital Clock and Ambient Temperature Gauge Display

   S

Safety-Cage Passenger Compartment

   S

Side Impact Protection System (SIPS)

   S

Side Impact Air Bags – Front seats

   S

Inflatable Curtain (IC) – Front and Rear Seat Head Protection

   S

Five 3-point Seatbelts with Pyrotechnic Pretensioners, Rear with ALR Child Seat Locking Feature

   S

WHIPS – Whiplash Protection System/Front Seats

S

Dual-threshold Driver’s Side SRS (Airbag).

S

Dual-threshold Front Passenger SRS (Airbag).

S

Padded Seat Restraints in all 5 Positions

S

ISO-FIX – Child/baby Seat Fixation/World-Wide Standard

S

Top-tether Child Seat Anchorage (3)

S

Rear Door Child-proof Locks

S

Driver/Passenger Seat Storage Pocket – Front           (Leather only)

S

Seat Back Storage Pockets: 1 With Vinyl/Cloth Upholstery; Additional Net Pocket with Leather-Cross Country unique

S

Dash Mounted Primary Cup Holder

O

Two Front, Center Console Cup Holders

S

Integrated Grab Handle for Front Passenger (Center Console)

S

40/20/40 Split Folding Rear Seat-Cross Country unique with Manually Retractable Head Restraints

S

Integrated Booster Cushion with 40/20/40 -  W139  Note:

1.Cushion (Rear, Driver-side) W139 -  W207

2 Cushions (Rear, Outboard) W208

Note:

For W135-138 Production, the Versatility Package or the Integrated Booster as a single option is not available

O

Folding Front Passenger Seat

S

Two Position Rear Backrest (load: 25°, comfort: 30°)

S

8-way Adjustable Power Driver /Passenger Seat  with 3 Memory Settings on Driver's Seat

O

Rearward-facing Child Auxiliary Seat -Weight Range: 50-88 lbs. (23-40kg); Max. Height:  55 in. (140 cm)

O

Driver/Passenger Seat Storage Pocket – Front           (Leather only)

S

Heated Front Seats (US)

O

Heated Front Seats (Canada)

S

Auto-Down/Up Front Power Windows with Rear Window Deactivation Switch and Anti-Trap Feature

S

Front center armrest with 2 cupholders for the rear seat passengers (underside of armrest lid)

S

Wastebin / Bottle Holder (Rear Seat, at Rear of Console)

O

Power Tailgate Lock/Unlock

S

Warning or Indicator Lamps:

  -  Windshield Washer Fluid Level

S

  -  Low-Fuel Level

S

  -  Rear Fog Lamp

S

  -  High Beam

S

  -  Bulb Failure

S

  -  Cruise Control Active Indicator

S

  -  SRS

S

  -  Battery Charge

S

  -  Low Oil Pressure

S

  -  Brake Failure

S

  -  Parking Brake

S

  -  ABS

S

  -  Gear Change Indicator (Orange Arrow)

S

  -  Low Coolant Level

S

  -  Check Engine

S

  -  Lambdasond

S

  -  Service Reminder

S

Trip Computer

O

Homelink®

O

Wood Effect – Simulated Red Wood

Trim for Glovebox and Front/Rear Door Trim

O

Accessory Electronic Module Preparation

S

Electrical Accessory Connection

S

“Kippegrund” Cloth/Vinyl Upholstery w/ Color Coordinated Door Inserts

S

Cargo Security Cover

S

Leather-Faced Seating and Color Coordinated, Vinyl Door Inserts with Cross Country-unique Stitching

O

Leather Steering Wheel (Color Coordinated)

O

Leather Gear Shift Knob (Graphite Only)

S

5 (total) Floor Mats – (Reversible Textile/Rubber Cargo Area Mat)-Cross Country unique

S

Tool kit

S

S = STANDARD O = FACTORY OPTION N/A = NOT APPLICABLE A = ACCESSORY

STANDARD / OPTIONAL EQUIPMENT
Cross Country
Model Year 2002

EXTERIOR

XC

Power Glass Sunroof with Slide/Tilt Function and Sliding Sun Shade with Auto Open/Close

S

Contrasting Bumpers and Protective Moldings on the Wheel Arches and the Bottom of Each Door – Cross Country unique (Slate or Umber)

S

Power, Heated Outside Mirrors with Puddle Lights (Part of Approach Lighting)-Graphite

S

Rear Window Defroster with Automatic Timer

S

Grille with Large, Horizontal Graphite Squares - Cross Country-unique.  Perimeter and Volvo Diagonal in Bright Work

S

Headlight Wiper/Washer System (US)

O

Headlight Wiper/Washer System (Canada)

S

Rear Door Intermittent Wiper (with Automatic Function when Transmission in Reverse and Front Wipers On)

S

Day Time Running Lights (DRL)

S

Front Skid Plate (Aluminum) – Cross Country unique

S

Halogen Semi-Sealed Headlights with Replaceable Bulb

S

Front Fog Lights – Cross Country unique

S

Roofrails – Cross Country unique

S

Center Brake Light with Light-Emitting Diodes for Faster Response

S

Rear Fog Light

S

5 MPH Bumpers, Front and Rear (Fed.) (2.5 MPH-California)

S

Large Protective Body Side Molding

S

Paint:  Solid

S

Paint:  Metallic

O

Decklid / Tailgate Emblem “V70 XC AWD”

S

S = STANDARD O = FACTORY OPTION N/A = NOT APPLICABLE A = ACCESSORY

STANDARD / OPTIONAL EQUIPMENT
Cross Country
Model Year 2002

AUDIO SYSTEM

XC

HU-413 “Large Format” AM/FM Stereo with Full Logic (Electronic) Cassette, Dolby and Built-In 4 x 25 watt Amplifier with Six Speaker System

S

HU-613 In-dash Single CD player, AM/FM Stereo with Full Logic Cassette, Dolby “B” Noise Reduction, 4x25 watt Amplifier, Eight Speakers (Including D-Pillar)

O

HU-803 “Audio Max” In-dash 4 CD Changer, AM/FM Digital Tuner, Dolby ProLogic® Surround Sound, 9 Upgraded Speakers total, 4x75 watt external amplifier, 1x25 watt internal amplifier (center speaker)

O

Diversity Antenna System: Glass Embedded Primary Antenna and Bumper Mounted Secondary

S



OPTIONAL EQUIPMENT PACKAGES
Cross Country
Model Year 2002

Premium Package

The Premium Package provides all of the following amenities:

  • Leather Seating Surfaces
  • Leather Steering Wheel
  • Simulated Wood Trim
  • Sunroof
  • HU-613 Radio/CD
  • Power Passenger Seat



Weather Package (standard in Canada)

The Weather Package provides the features that help take the sting out of a cold or messy day.

  • Heated Front Seats
  • Headlamp Wiper/Washer



Touring Package

The Touring Package provides features which enhance the overall driving experience:

  • Grocery Bag Holder
  • Laminated Glass
  • Interior Air Quality Sensor (Requires ECC)
  • Homelink®
  • Auto-dimming Mirror
  • Trip Computer
  • Dash Cupholder
  • Cargo Net Protection

Grocery Bag holder is deleted when combined with the Versatility Package



Versatility Package
  • Third Row/Auxiliary Seat
  • Integrated Booster
  • Rear Trash Bin / Bottle Holder

Grocery Bag holder is deleted when combined with the Versatility Package



Individual Factory Options
Cross Country
Model Year 2002

Individual Options
  • Metallic Paint
  • Custom Cut Leather Seating Surfaces
  • Integrated Booster Cushion (One Cushion - Outboard, Driver's Side)
  • HU-803 Audio Max In-Dash 4 CD with Dolby Surround Sound
  • Volvo Navigation System (VNS) - Production Start - W150, Dec. 10th



B970 Graphite/Graphite Graphite Wheel with Graphite Leater Rim Entire Steering Wheel in Graphite

S = STANDARD O = FACTORY OPTION N/A = NOT APPLICABLE A = ACCESSORY
